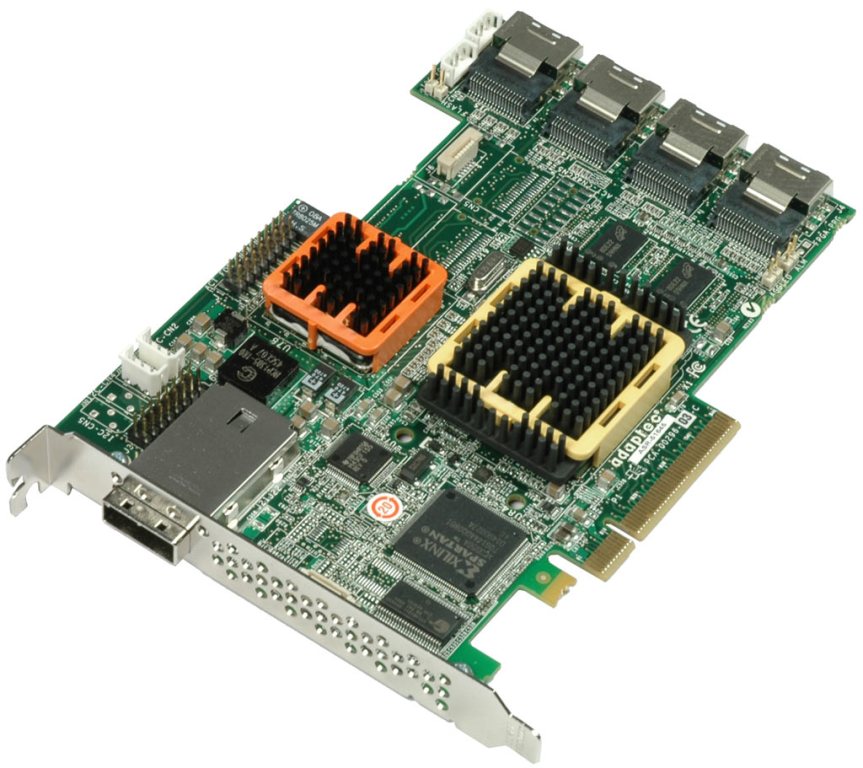

    • Adaptec RAID 51645

      [ Part number: 2258600-R ]

      Adaptec Raid 51645, 512MB Cache, 5 mini SAS. RAID levels 0, 1, 1E, 5, 5EE, 6, 10, 50 and 60

      Giá: Liên hệ

    Chọn mua

    Mua hàng

    Supported Operating Systems
      Microsoft Windows
    Red Hat Linux
    SUSE Linux
    SCO OpenServer
    UnixWare
    Sun Solaris
    FreeBSD
    VMware ESX

    For a detailed list see ASK Answer ID 15317
    Benefits
      Performance Unified Serial RAID controller supports both SATA and SAS devices. Ideal for bandwidth intensive storage applications; NAS, OLTP servers, web servers, and digital surveillance.
    Key Differentiators


    Intelligent Power Management

    Customer Needs
      High I/O transaction and high bandwidth processing.
    Form Factor
      ½ Length/Full Height
    Cache Memory


    512MB of DDR2 memory

    RAID Levels
      RAID levels 0, 1, 1E, 5, 5EE, 6, 10, 50 and 60
    Key RAID Features
      • Supports 20 direct-attached or up to 256 SATA or SAS disk
      drives using SAS expanders
    • RAID levels 0, 1, 1E, 5, 5EE, 6, 10, 50 and 60
    • Quick initialization
    • Online Capacity Expansion
    • Copyback Hot Spare
    • Dynamic caching algorithm
    • Native Command Queuing (NCQ)
    • Background initialization
    • Hot-plug drive support
    • RAID Level Migration
    • Hot spares – global, dedicated, and pooled
    • Automatic/manual rebuild of hot spares
    • SAF-TE enclosure management
    • Configurable stripe size
    • S.M.A.R.T. support
    • Up to 512TB array sizes
    • Multiple arrays per disk drive
    • Bad stripe table
    • Dynamic sector repair
    • Staggered drive spin-up
    • Bootable array support
    • Optimized Disk Utilization
    Bus System Interface Type


    8-lane PCIe

    External Connectors


    1 external (SFF-8088) Mini SAS

    Internal Connectors
      4 internal (SFF-8087) Mini SAS
    Package Contents
      • Adaptec RAID 51645 Controller
    • Quick Installation Guide
    (English/French/German/Italian/Spanish)
    • Software and documentation CDs
    • Cables: four internal Mini SAS x4 to (4x) SATA fanout cables w/ sideband, 0.5 meter

    Management Utilities

    Adaptec Storage Manager™ (ASM)
    • Java-based GUI Management Utility
    • Remote configuration, monitoring & notification
    • ASM OS Support: Windows, Linux,  SCO, Solaris, FreeBSD
    • Microsoft VDS Support
    • SNMP, SMTP
    • Remote firmware updates

    ARCCONF
    • Command Line Interface
    • SMI-S support for VMware

    Adaptec BIOS Utility (ACU)
    • BIOS level configuration utility
    • Flashable BIOS support

    Physical Size

    4.6” H x 6.43” L (116mm x 164mm)

    Operating Temperature

    0°C to 55°C* (with 200 LFM airflow; without battery)
    0°C to 40°C* (with 200 LFM airflow; with battery)

    Note: This Adaptec card contains a powerful RAID processor which requires adequate airflow to operate reliably. Please install this card only into server or PC chassis with recommended airflow (200 LFM).

    * Ambient temperature measured 1" away from the RAID processor

    Operating Voltage

    0.47 amp @ 3.3V
    1.8 amp @ 12V

    Regulatory Certification

    CE, FCC, UL,  C-tick, VCCI

    Mean Time Before Failure (MTBF)

    873,402 hours at 40 degree C.
