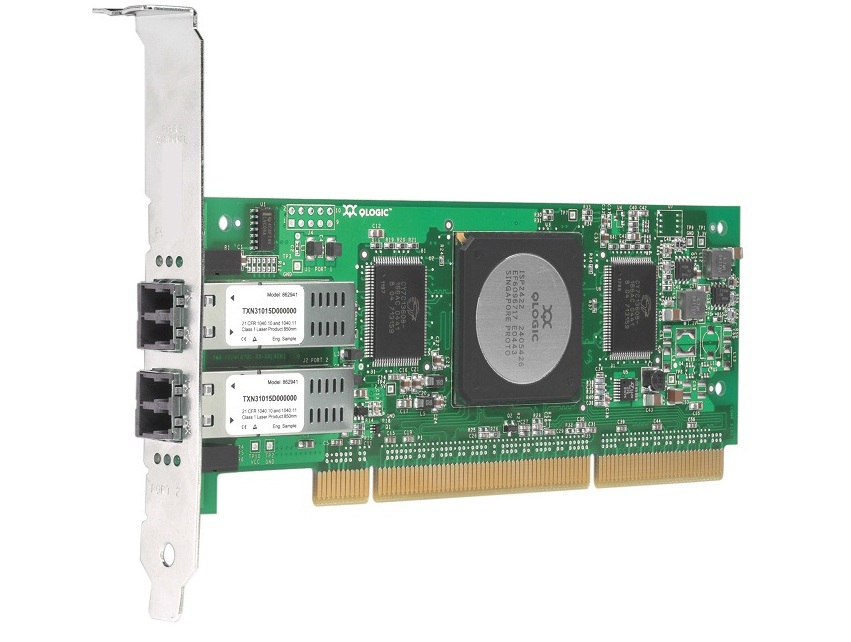

QLogic QLA2462 Dual Port 4Gbps FC PCI-X HBA
The QLx246x Adapters come in single-, dual-, and quad-port multi-mode optic configurations and are backed by an industry-leading, five-year (no charge) limited warranty for -CK/-E SKUs.
| Adapter Model | QLA2460 | QLA2462 |
|---|---|---|
| Physical Specifications | ||
| Ports | Single 4Gbps Fibre Channel | Dual 4Gbps Fibre Channel |
| Form factor | Low-profile MD2: | Low-profile MD2: 16.93 cm × 5.15 cm (6.7 in. × 2.5 in.) |
| Connections | Small form factor fixed (SFF) multimode optic with LC-style connector | |
| Bracket size | Standard: 1.84 cm × 12.08 cm (.73 in. × 4.76 in.) Low-profile: 1.84 cm × 8.01 cm (.73 in. × 3.15 in.) | |
| Environment and Equipment Specifications | ||
| Airflow | No airflow required | No airflow required |
| Power Consumption | 6.5 Watts (maximum) | 8.0 Watts (maximum) |
| Operating Temperature | 0°C/32°F to 55°C/131°F | 0°C/32°F to 55°C/131°F |
| Storage Temperature | –20°C/–4°F to 70°C/158°F | –20°C/–4°F to 70°C/158°F |
| Relative Humidity | 10% to 90% (non-condensing) | 10% to 90% (non-condensing) |
| Storage Humidity | 5% to 95% | 5% to 95% |
| Cable distances |
| |
| Host Bus Interface Specifications | ||
| Bus interface | 64-bit, PCI-X 2.0 266MHz DDR, compatible with 66/33MHz PCI and 133/100/66MHz PCI-X | |
| Signal voltage | 3.3V (mode 1), 3.3V/1.5V (mode 2) | |
| Memory | 1MB SRAM, 1MB flash (SPI), and 2KB NVRAM (SPI) | |
| Hardware platforms | IA32 (x86), IA64, IEM64T, AMD Opteron™ 64, Sun™ SPARC®, Apple® G5 (Xserve® and Power Mac®) | |
| Compliance | PCI Local Bus Specification, revision 2.3, PCI-X Protocol Addendum to the PCI Local Bus Specification, revision 2.0a, PCI-X Electrical and Mechanical Addendum (revision 2.0a) to the PCI Local Bus Specification, PCI Bus Power Management Interface Specification revision 1.1, PCI Hot Plug Specification, revision 1.0 | |
| Fibre Channel Specifications | ||
| Data rate | 4/2/1Gbps auto-negotiation (4.2480/2.1240/ 1.0625Gbps) | |
| Performance | 150,000 IOPS | |
| Topology | Point-to-point (N_Port), arbitrated loop (NL_Port), and switched fabric (N_Port) | |
| Logins | Support for F_Port and FL_Port login: 2,048 concurrent logins, and 2,048 active exchanges | |
| Class of service | Class 2 and 3 | |
| Protocols | FCP (SCSI-FCP), FC-TAPE (FCP-2) | |
| Compliance | SCSI-3 Fibre Channel Protocol (SCSI-FCP), Fibre Channel Physical and Signaling Interface (FC-PH), Fibre Channel 2nd Generation (FC-PH-2), Third Generation Fibre Channel Physical and Signaling Interface (FC-PH-3), Fibre Channel-Arbitrated Loop (FC-AL-2), Fibre Channel Fabric Loop Attachment Technical Report (FC-FLA), Fibre Channel-Private Loop Direct Attach Technical Report (FC-PLDA), Fibre Channel Tape (FC-TAPE) profile, SCSI Fibre Channel Protocol-2 (FCP-2), Second Generation FC Generic Services (FC-GS-2), Third Generation FC Generic Services (FC-GS-3), Fibre Channel Framing and Signaling (FC-FS) | |
| Tools and Utilities | ||
| Management tools | SANsurfer® Fibre Channel HBA Manager | |
| Device utilities | Command line interface; utilities for firmware, driver, boot code, NVRAM | |
| Boot support | BIOS, EFI, FCode | |
| APIs | SNIA API V2, SMI-S, FDMI | |
| Operating systems | Windows Server® 2003, 2008, 2008 R2; Windows 2000; Windows XP Pro; Windows Vista; Solaris 8, 9, 10; OpenSolaris™ 2008, 2009; Red Hat® RHEL 3.0, 4.0, 5.0; Novell SLES 8, 9, 10, 11; Novell NetWare 6.5; Mac OS X; Citrix XenServer™ 3.2 – 4.1, 5.0, 5.5; Oracle Enterprise Linux 4, 5; VMware ESX™/ESXi 3.5, 4.0 | |
| Agency Approvals | ||
| EMI and EMC | US: FCC Part 15, Class A Canada: Industry Canada ICES-003, Class A | |
| Safety | UL, cUL: UL60950, CSA C22.2 No.60950, Class 1 Laser Product per DHHS 21CFR J | |
